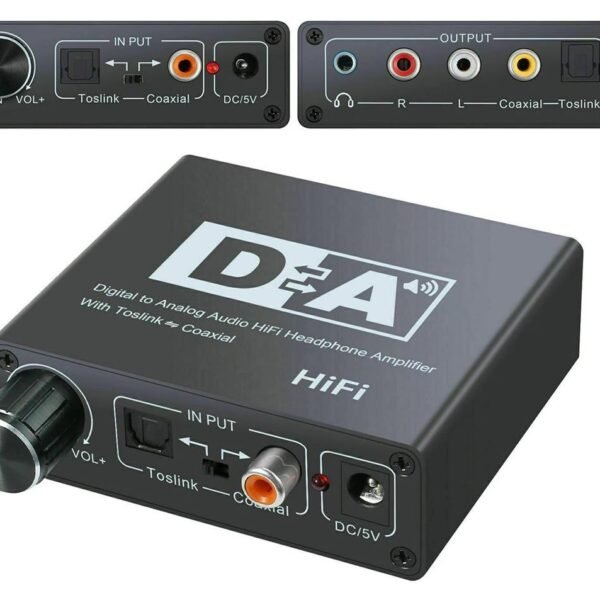

Lunatic 3944 5.1 CH DAC Optik Digital To Analog Coaxial Toslink Çevirici Dönüştürücü Adaptör

l Build-in high performance RTOS operating system and audio decoder chip; support DTS/AC-3.

l Super fast start time about 3 seconds.

l Input:1 SPDIF Optical, 1 Coaxial

l Output: SW,CEN,SR,SL,FR,FL; 3.5mm Headphone Port

l Auto switch between optical and coaxial channel input.

l One-key switch for Pass/2.0/5.1 channel output.

l Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.

l High compatibility: Support network player, HDTV, Blu-ray DVD, DVD, PS3, Xbox 360, DM500S, DM800HD, etc.

l Small Size and Metal case, Anti-interference.

l Adopt 6CH RCA /3.5mmHeadphone port output,convenient and efficient in use.

l Supports 6CH volume synchronous adjustment.

Specification?

Support audio format..MP3,AC3,DTS,WAV,WMA,

AAC,ALAC,FLAC,APE,OGG,M4A

Signal Noise Ratio…………………………………..120db

Stereo Isolation……………………………..80db?1KHZ?

Channel Unbalance……………………………………..0db

Sampling Rate………………………………..32~192 KHz

Bit Rate……………………………………………..16~24 Bit

Response Frequency…………20Hz~20KHz+/-0.7db

THD………………………….20Hz~20KHz 0.25-0.065%

THD+N………………………………………….1KHz 0.15%

Analog Output level…………………………………….2.2V

Analog Input level………………………………….1V(3db)

Shell Dimension……………….138.2 x 97.5 x 21.2mm

Weight……………………………………………………..238g

Working Voltage…………………………………….DC +5V

Max Power Current…………………………………210mA

Working Temperature………………………………0-70?

Working Humidity…..10%-80%RH(non-condensing)

Storage Temperature…………………………….-10-80?

Storage Humidity…..5% -90% RH(non-condensing)
